Bio-digester technology treats human waste at the source. A collection of anaerobic bacteria that has been adapted to work at temperatures as low as -5°C and as high as 50°C act as inocula (seed material) to the bio-digesters and convert the organic human waste into water, methane, and carbon-dioxide.

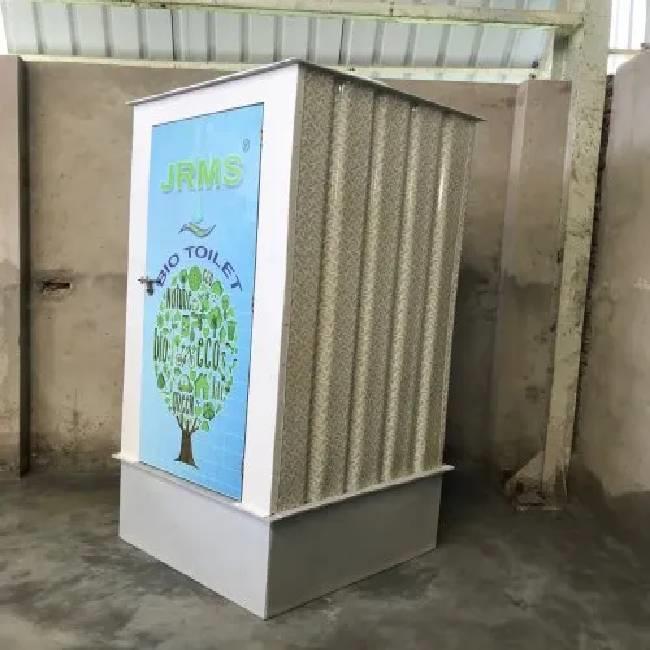

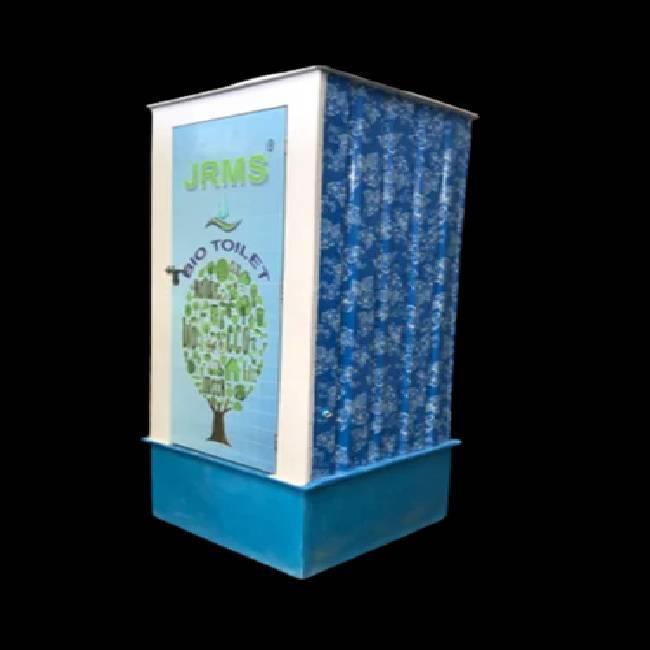

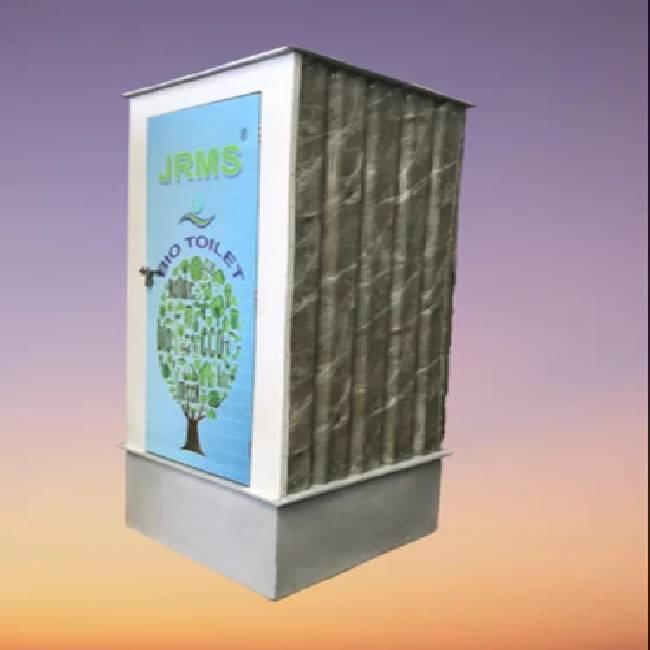

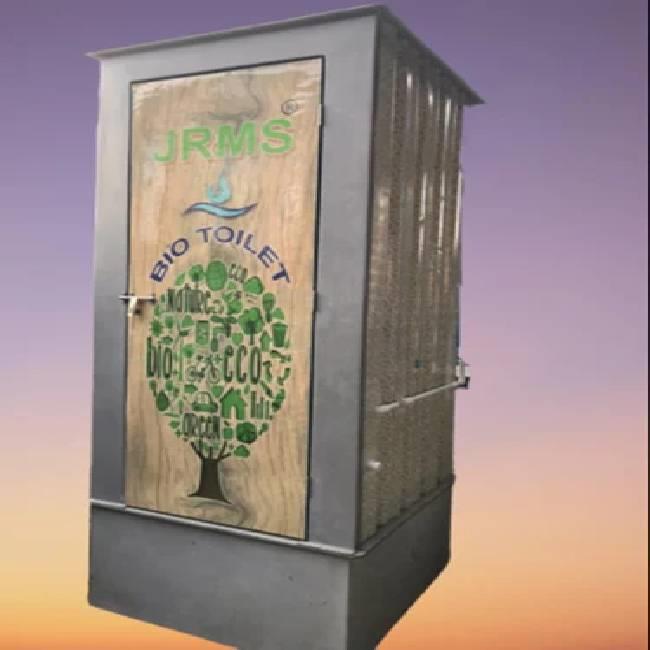

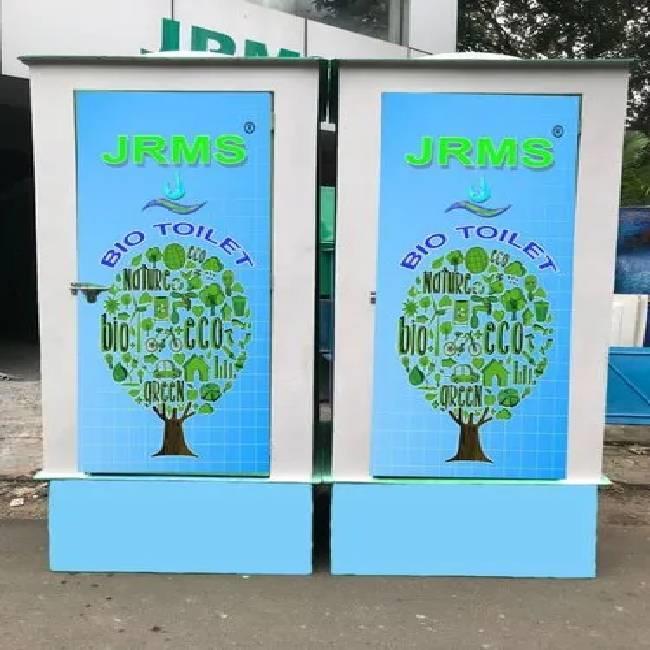

FRP Western Bio Toilet
Sl.No
Item
Specifications
Oty
1.
Make: JRMS
Model No: JBT-EWC-ST-01
Single FRP structure of
1060x1010x2180mm
Thickness -3 + (-)
Wall : The superstructure has 4 nos of embossed ribs for better strength
Moc – FRP
1 Nos
2.
FRP Door size
Size 680x1830mm
Thickness : 20mm
Hinges: 3 Nos
Al drops: 1 No
Tower bolt: 1 No
Long handles: 1 No of 150mm
3.
Ventilator
Size :140 x 240
Moc – Glassfiber , Resin
Thickness – 3 mm
4.
Sanitation and plumbing
Size : Standard
1. Commode (ceramic)
2. Cistern 10 ltr (PVC)
3. Angular cock (ABS)
4. Connector pipe(PVC)
5. Hand shower (PVC)
6. 1 Bib cock (ABS)
7. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
5.
Bio digester tank
(Inbuilt)
Size: 1000x1000x500mm
Moc: FRP
Capacity: 500litre
Thickness: 8mm
Users: 4 to 5 users
Model No: JBT-EWC-ST-02
Single FRP structure of 1060x1010x2180mm
Size 680x1830mm Thickness : 20mm Hinges: 3 Nos
Al drops: 1 No Tower bolt: 1 No
Moc – Glassfiber , Resin Thickness – 3 mm
5. Wash basin (FRP)
6. Pillar cock (ABS)
7. Connector pipe (PVC)
8. Hand shower (PVC)
9. 2 in 1 Bib cock (ABS)
10. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
Bio digester tank (Inbuilt)
Size: 1000x1000x500mm Moc: FRP
Capacity: 500litre Thickness: 8mm
Model No: JBT-EWC-ST-03
5. Mirror(Glass)
6. Wash basin (FRP)
7. Pillar cock (ABS)
8. Connector pipe (PVC)
9. Hand shower (PVC)
10. 2 in 1 Bib cock (ABS)
11. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
Table 1. SUPPLY of FRP Western Bio Toilet
Model No: JBT-EWC-ST-04
Electrical Work
1. Switch Board-1 No
2. Switch-1 nos
3. Light holder -1 No
4. Light-1 No
Wire connection shall be provided inside the toilet.
External connections are not in our scope.
1 No
6.
Model No: JBT-EWC-ST-05
2. Switch-2 nos
5. Exhaust Fan-1 No
Model No: JBT-EWC-ST-06
9. Liquid Soap dispenser (Poly carbonate)
10. Hand shower (PVC)
11. 2 in 1 Bib cock (ABS)
12. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
Model No: JBT-EWC-ST-07
9. Towel Hanger(SS)
10. Liquid Soap dispenser (Poly carbonate)
11. Hand shower (PVC)
12. 2 in 1 Bib cock (ABS)
13. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
FRP Western Bio Toilet with Overhead water tank
Model No: JBT-EWC-ST-10(WT-01)
6. 2 in 1 Bib cock (ABS)
Water Storage Tank
Capacity : 200 litre
Model No: JBT-EWC-ST-10(WT-02)
Model No: JBT-EWC-ST-10(WT-03)
7. Mirror(Glass)
Model No: JBT-EWC-ST-10(WT-04)
7.
Model No: JBT-EWC-ST-10(WT-05)
FRP WesternBio Toilet withOverhead water tank
Model No: JBT-EWC-ST-10(WT-07)
8. Mirror(Glass)
Model No: JBT-EWC-LT-01
1200x1200x2180mm
Size: 1200x1200x500mm
Capacity: 700litre
Users: 6 to 8 users
Model No: JBT-EWC-LT-02
Model No: JBT-EWC-LT-05
Model No: JBT-EWC-LT-12
4. Urinal (ceramic)
5. Stop Cock (ABS)
6. Connector pipe(PVC)
8. Wash basin (FRP)
9. Pillar cock (ABS)
10. Connector pipe (PVC)
11. Liquid Soap Dispenser(Poly carbonate)
12. Towel Hanger (SS)
13. Hand shower (PVC)
14. 2 in 1 Bib cock (ABS)
15. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
FRP Western Bio Toilet With Overhead water Tank
Model No:JBT-EWC-LT-10(WT-01)
Model No: JBT-EWC-LT-10(WT-01)
Model No:JBT-EWC-LT-10(WT-02)
Model No: JBT-EWC-LT-10(WT-02)
Model No: JBT-EWC-LT-10(WT-03)
Model No: JBT-EWC-LT-10(WT-05)
FRP Western Bio Toilet With Overhead water tank
Model No:JBT-EWC-LT-10(WT-07)
Model No: JBT-EWC-LT-10(WT-07)
6. Towel Hanger(SS)
7. Liquid Soap dispenser (Poly carbonate)
Table 1. SUPPLY of FRP Indian Bio Toilet
Model No: JBT-IWC-ST-03

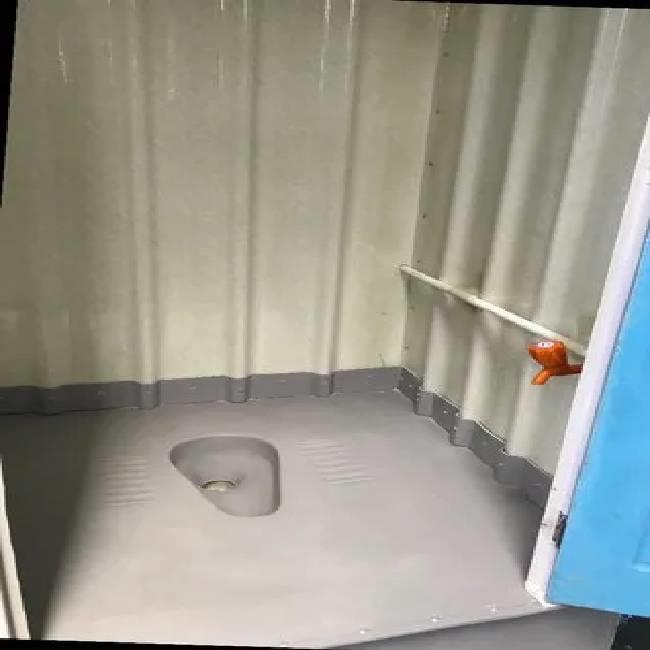

FRP Indian Bio Toilet
1. Orissa Pan (FRP)
2. Wash basin (FRP)
3. Pillar cock (ABS)
4. Connector pipe (PVC)
5. 1 Bib cock (ABS)
6. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.
Model No: JBT-IWC-ST-05
3. Mirror(glass)
4. Pillar cock (ABS)
5. Connector pipe (PVC)
SUPPLY of FRP Indian Bio Toilet
Model No: JBT-IWC-LT-03
5. Bib cock (ABS)
SUPPLY of FRP Indian Bio Toilet with Overhead water tank
Model No: JBT-IWC-ST-10(WT-02)
Model No: JBT-IWC-ST-10(WT-07)
4. Mirror(glass)
6. Towel Hanger (SS)
8. Bib cock (ABS)
9. ½ inch pipe line ( Upvc) connection shall be provided inside the toilet.

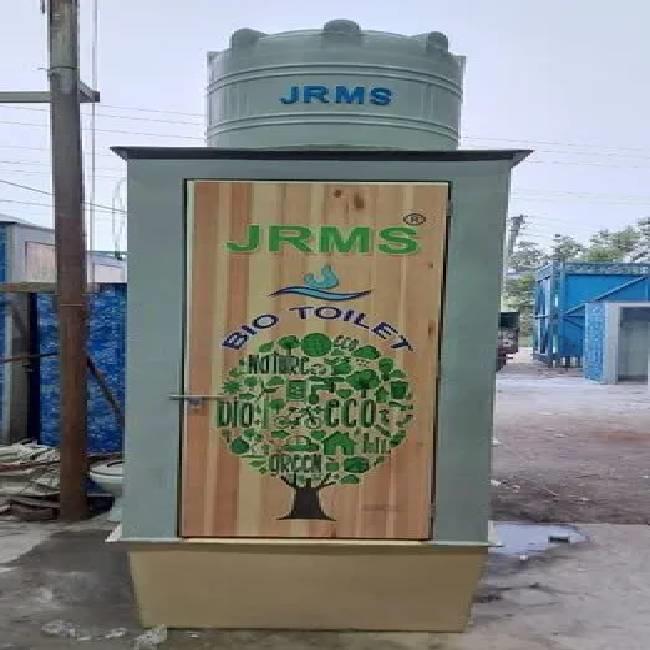

SUPPLY of FRP Indian Toilet Cabin with Overhead water tank
Model No: JBT-IWC-LC-06(WT-02)
FRP Indian Toilet Cabin
Model No: JBT-IWC-LT-06
5. Mirror(glass)
6. Bib cock (ABS)
Users:6 to 8 users
Model No: JBT-IWC-LT-10(WT-02)
